M2C 16mm O-Ring “Thru” Shock Pistons (4) (7×1.25/1.35 Hole)

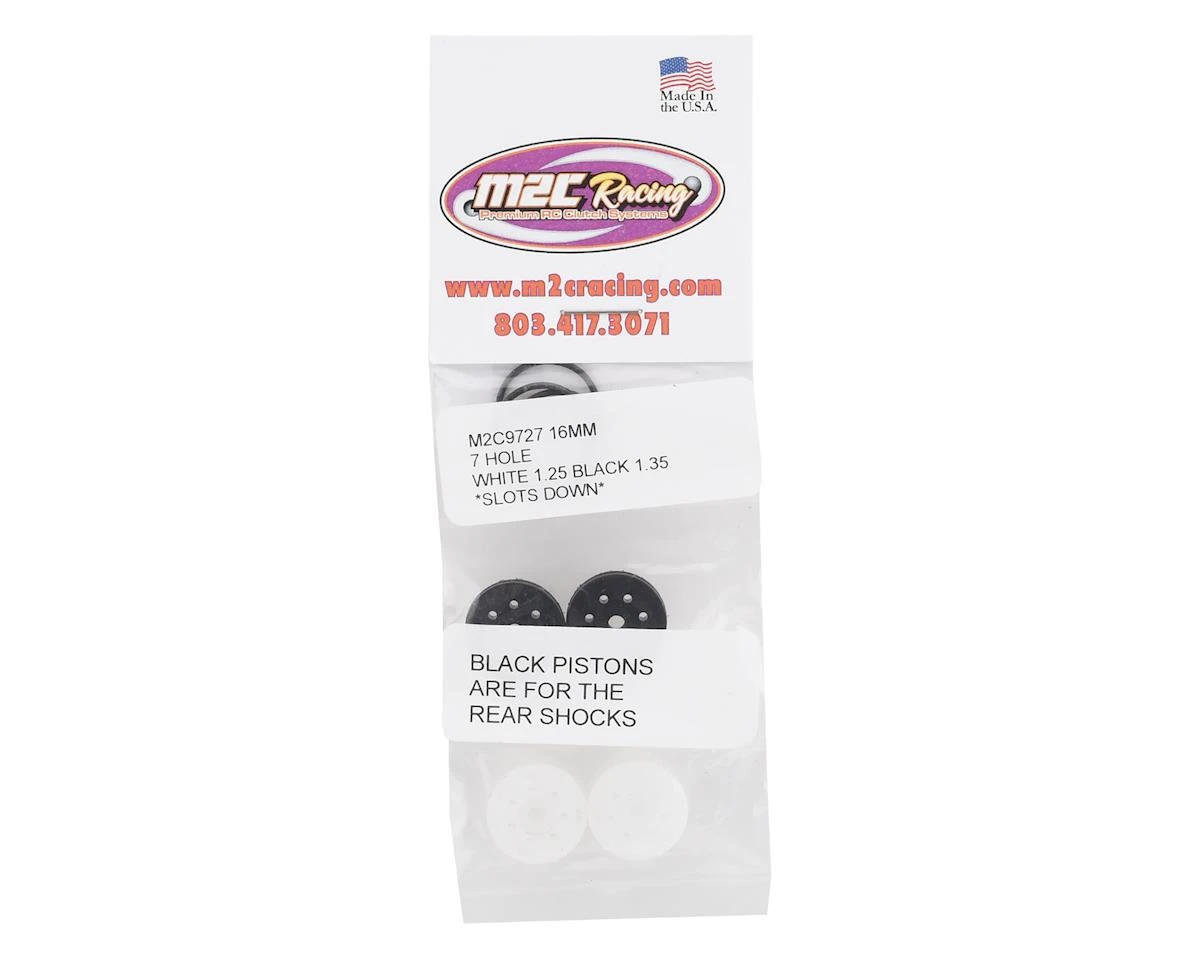

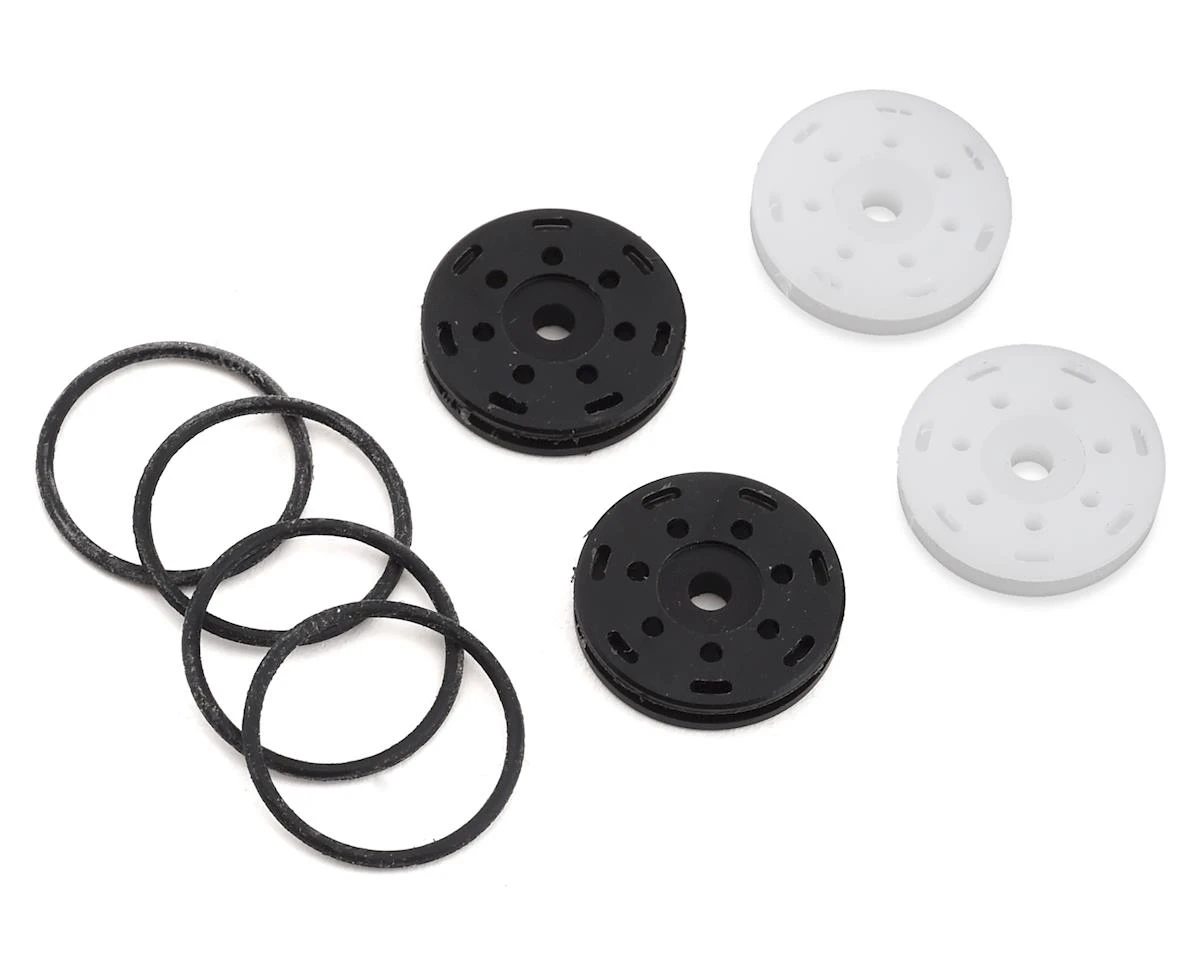

The M2C 16mm O-Ring “Thru” Shock Pistons are made using Delrin material which offers an excellent balance of properties that bridge the gap between metals and plastics. This material possesses high tensile strength, toughness and also exhibits low moisture absorption. Package includes two white 7×1.25 hole pistons for the front and two black 7×1.35 hole pistons for the rear.

This updated model features a 1mm o-ring and pistons with 7 slots on the bottom for better dampening and to slow down rebound. As the piston moves through the shock body, oil passes through the large holes, applying pressure to the o-ring, slowing the movement of the piston. This design gives you the option of changing the compression or rebound rate of the shock. If a faster shock re-bound is desired, face the large holes up, if faster compression is desired, face the large holes down. 400 to 500cst shock oil is recommended with these pistons but a higher viscosity could be used to increase resistance. Compatible with Mugen, Kyosho, JQ, Team Asscociated, Tekno and XRAY.

NOTE:

• M2C recommends the slots go down
• 400 to 500cst shock oil recommended

Compatible with:

• Mugen
• Kyosho
• JQ
• Team Associated
• Tekno
• XRAY
