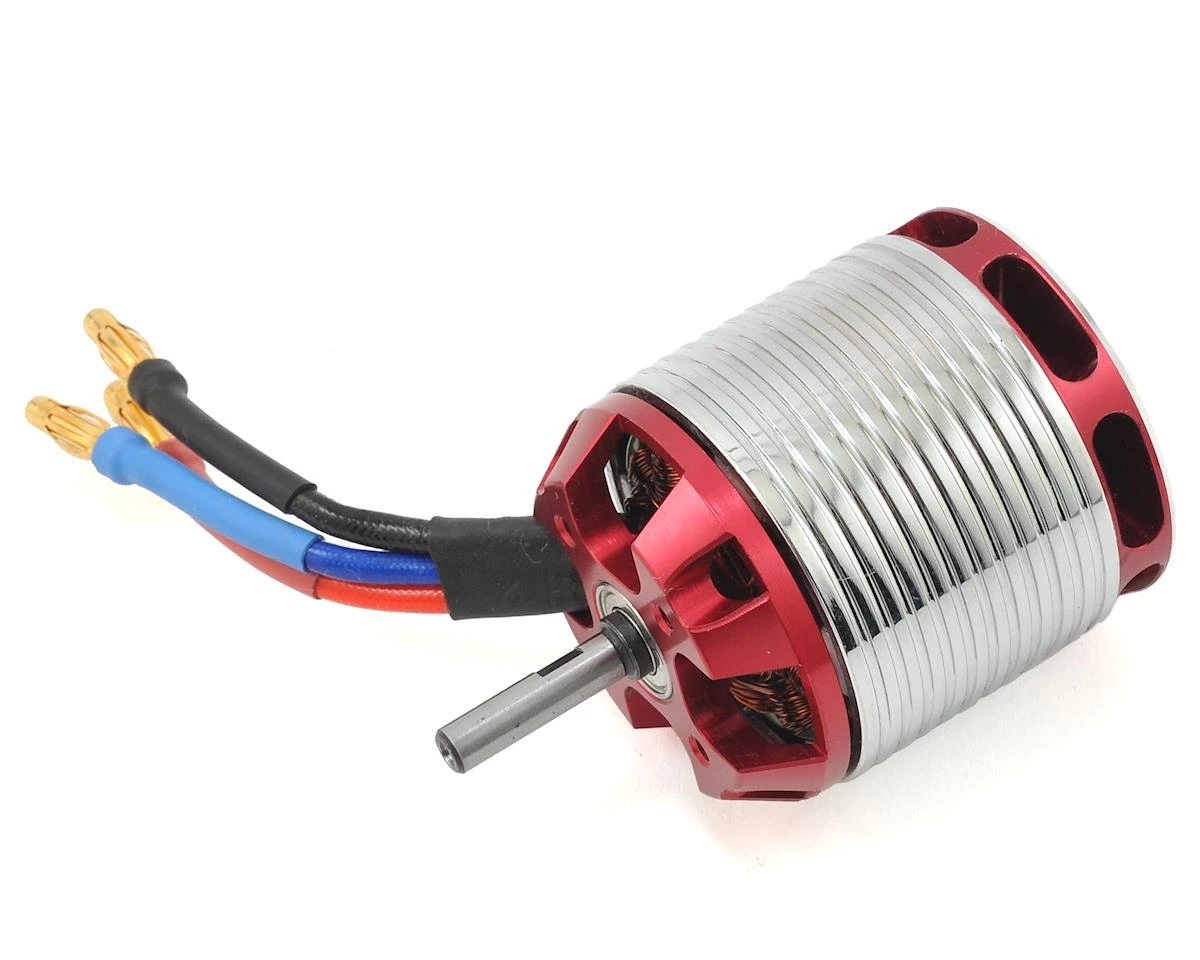

ALIGN 520MX Brushless Motor (1600kV)

This is an Align 1600kV 520MX brushless Motor, suited for use with the T-Rex 500X helicopter. The 520MX motor incorporates radial fan in its end bell, creating powerful airflow to dissipate heat. Tweaks to motor design and reduction in weight not only contributes to dramatic power increase, the high efficiency cooling system enables cooler operating temperature during and after flights when compared to motor of previous generation.The 520MX motor armature had a special balance adjust to improve the serious shaking problem that other tiny motors have.

Specifications:

• Input voltage: DC 18-26V 6s LiPo
• Max continuous current: 85A/130A(5sec)
• Max output power: 1900W/2750W(5sec)
• KV value: 1600KV
• Stator Arms: 9
• Magnet Poles: 6
• Dimension: spindle 5x45x71.7mm
• Weight: 267g (aprox.)

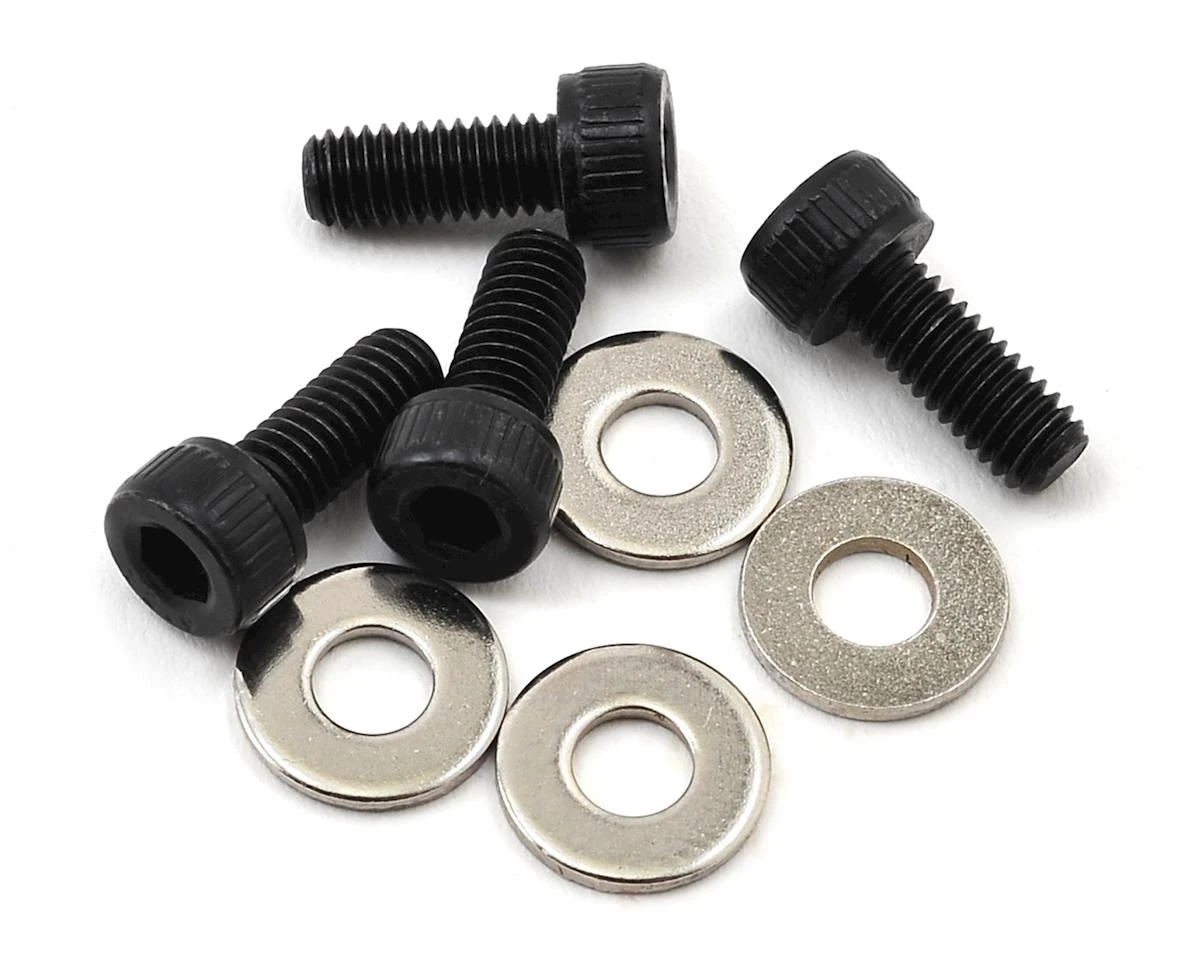

Includes:

• (4) Socket screw (3×10)
• (4) Washer (3x8x1)
• (3) 4mm gilt terminal

This product was added to our catalog on April 26, 2017
